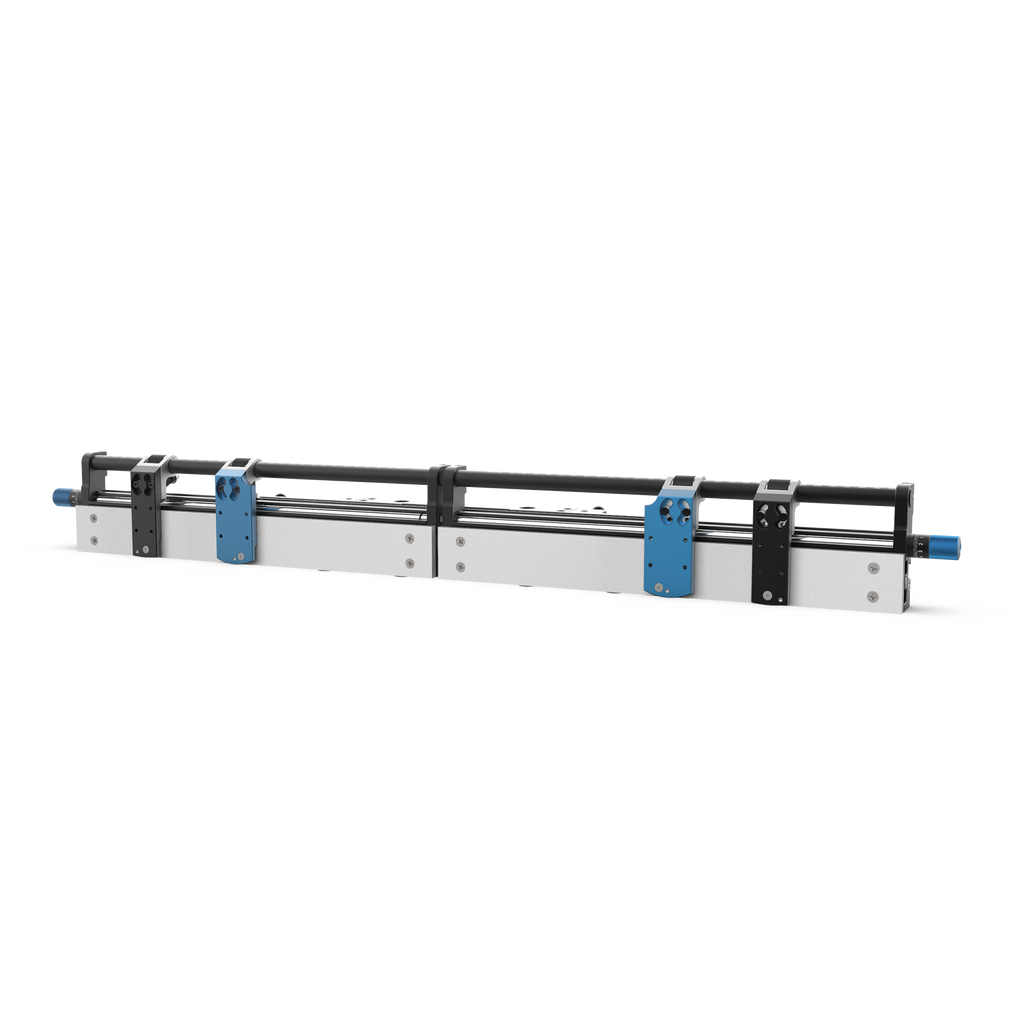

JMPv2 Precision Fence System



Why Chose the

 JMPv2 Precision Fence System?

The incredible cutting ability of the JMPv2 has been greatly expanded with our new Precision Fence System. Available in either imperial or metric versions, this precision fence system has an array of accessories that makes it possible to do things that have yet to be imagined.

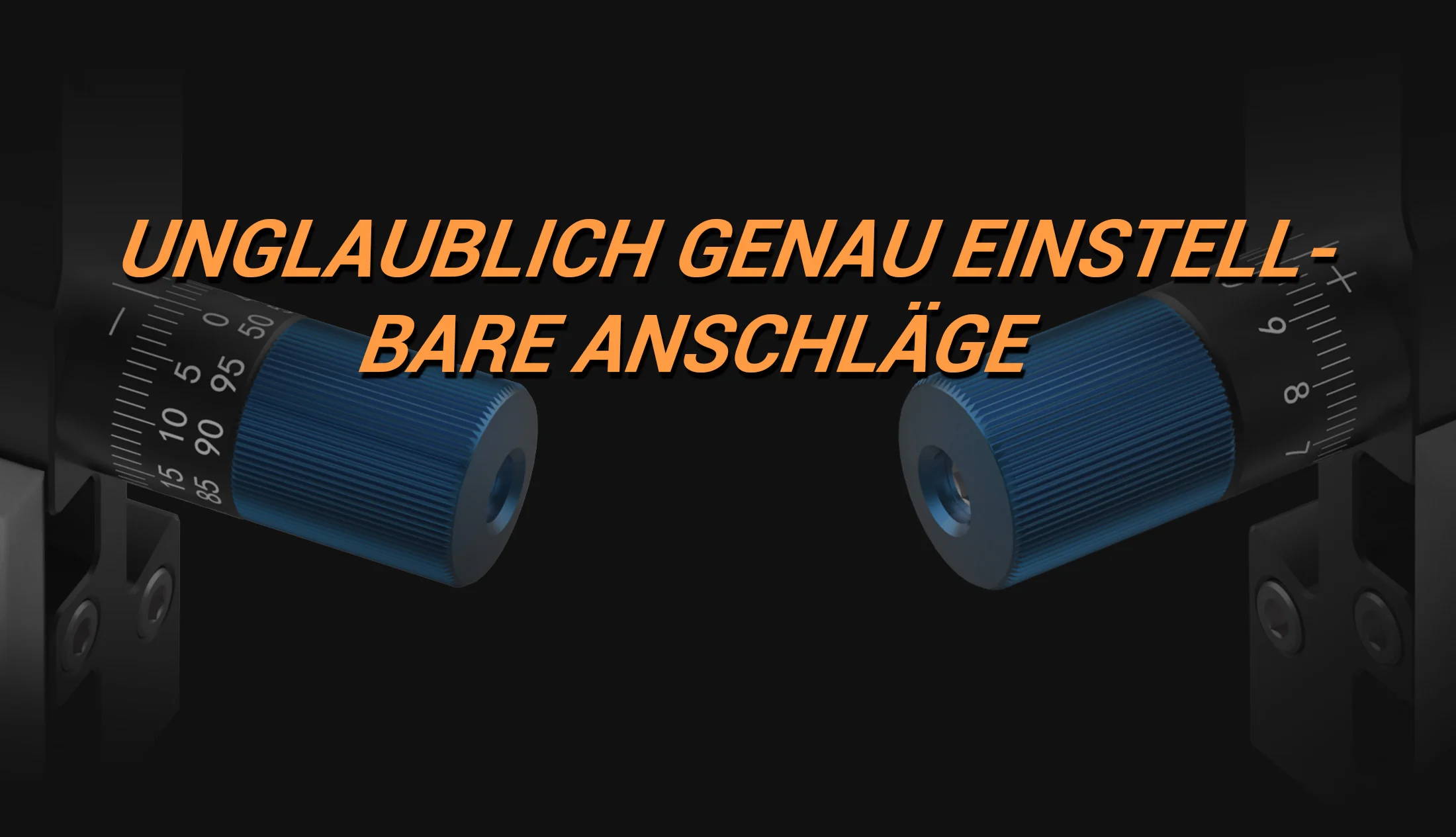

Each fence half has two stop blocks, the black stop is used for rough positioning, the blue one is used for accuratepositioning and has a 0.02mm (0.001”) fine adjustment.


The increment of a full turn of the scale knob is 1mm (0.05").

The increment for each turn of one grid in the scale ring is 0.02mm (0.001") .



Flipped stopswith versatility

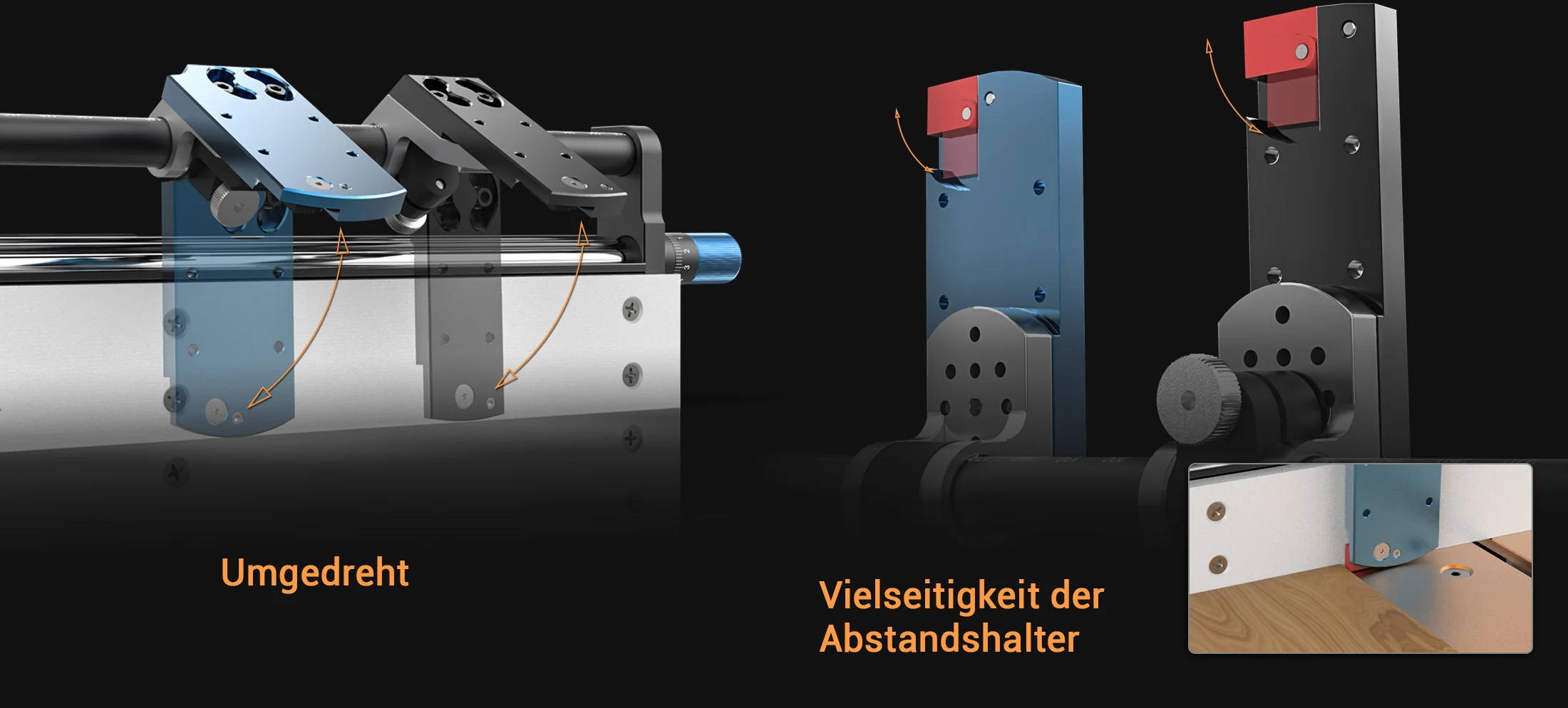

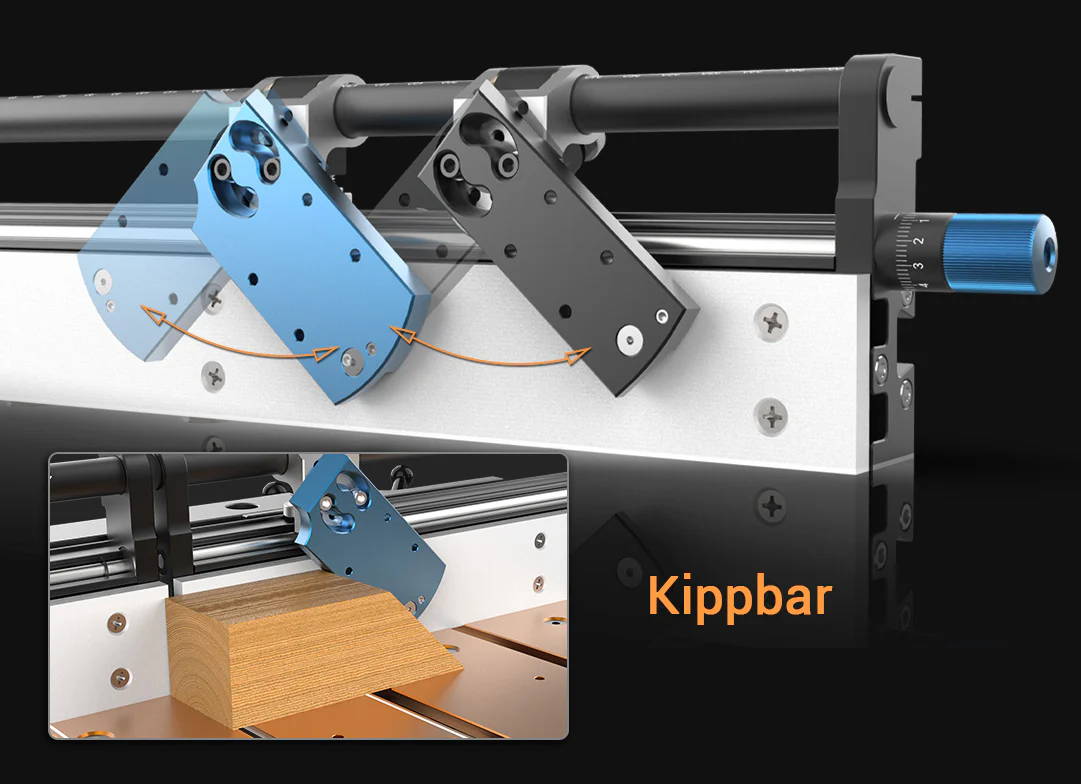

Both fence stop blocks can be flipped up and down or tilted left and right according to the planned cut. The two spacers on the stop blocks can be rotated to touch the pretty short workpiece.


The JMPv2 has the innovative

separated fence

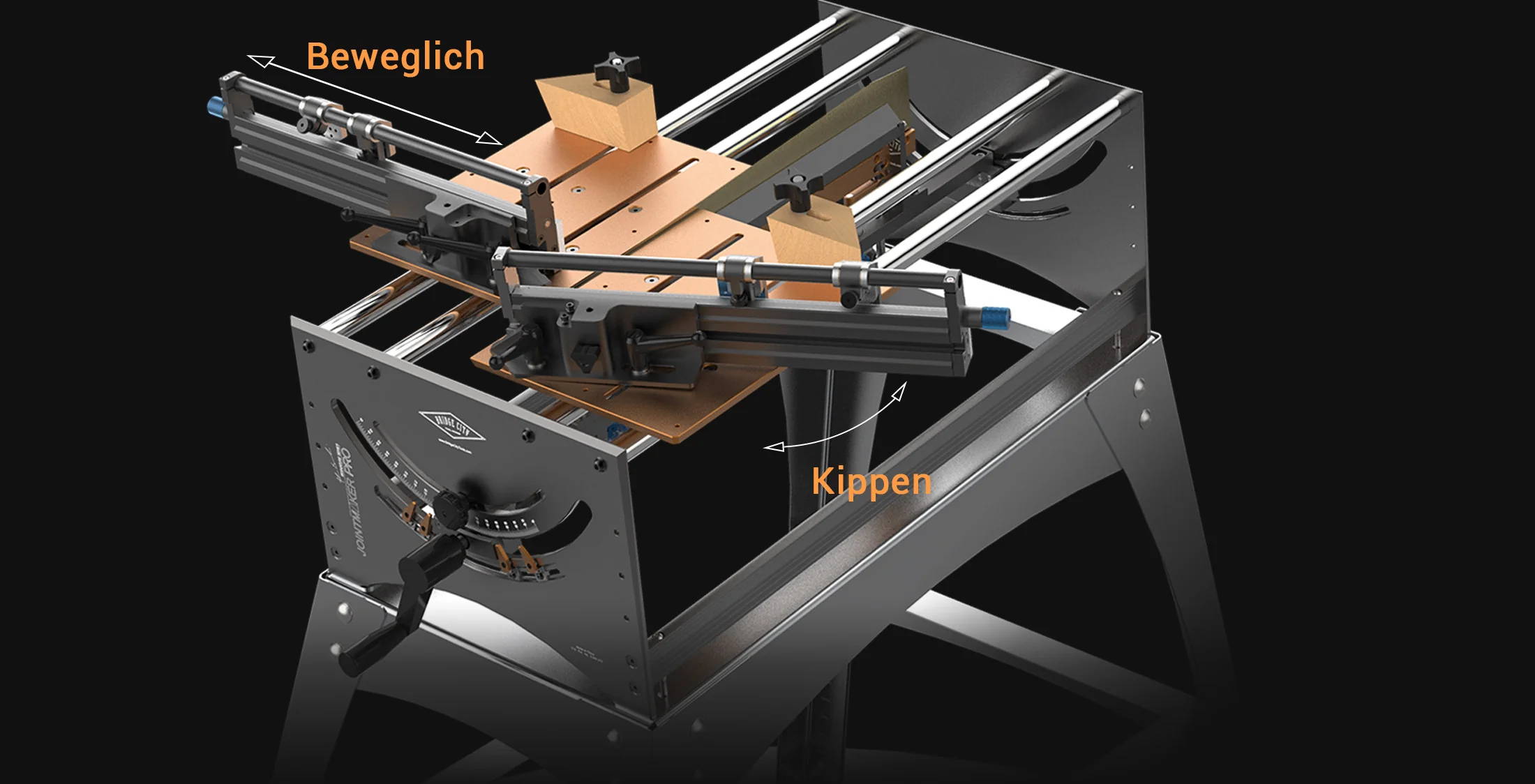

The separated fence can be moved according to different requirements, it can also tilt to different angles on the sliding table, which can satisfyvarious cutting.


Multiple clamping available

 for various cuttings

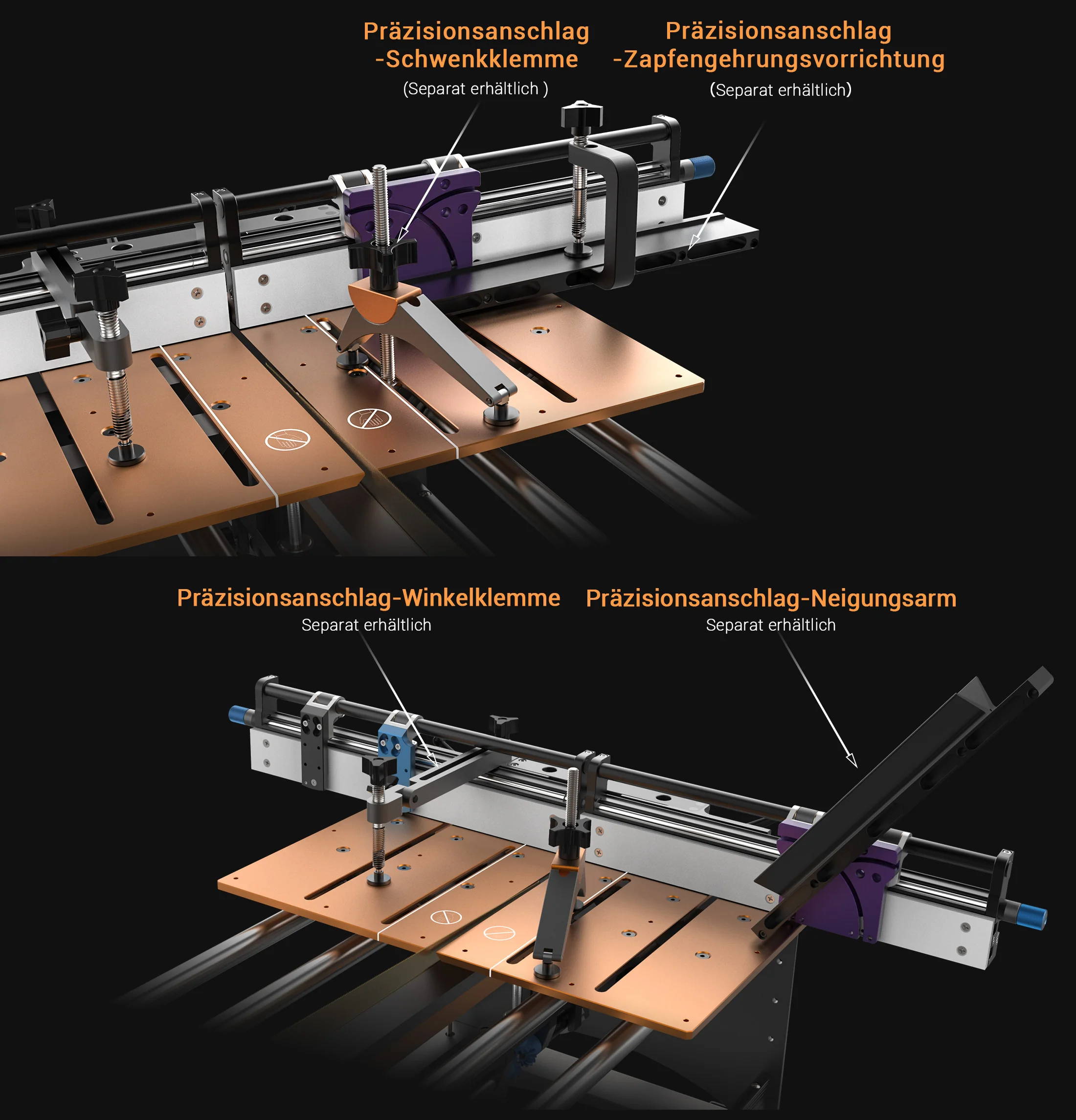

Multiple clamps can be perfectly mounted on the precision fence, which can meet most cutting demands.


Special processing with

 selected material and strict quality control

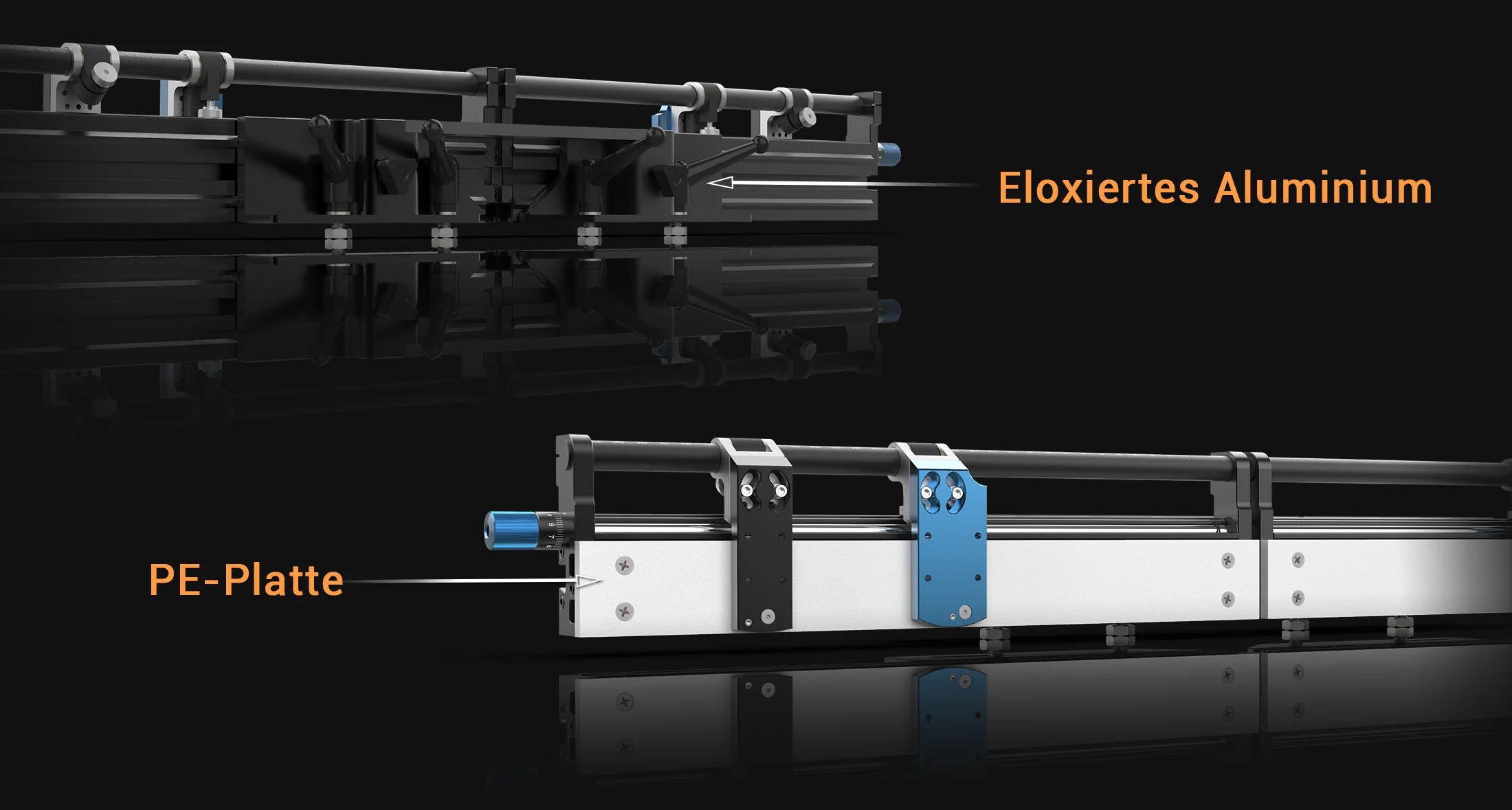

The Fence is made of anodized aluminum, so that it is of high strength, wearresistance and rust-proof. The panel is made of PE board, which is environmental friendly, durable, and resistant to high temperatures and impacts.


Specifications



"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."
