HP-10 Foxtail Convertible Plane
One Plane, Infinite Possibilities!
Introducing the extraordinary HP-10 Foxtail Convertible Plane from Bridge City Tools. Designed to surpass all expectations in planing tasks, this precision hand tool showcases a compact and ergonomic design, guaranteeing effortless handling and precise control. With meticulous attention to detail, the HP-10 embodies Bridge City Tools' unwavering commitment to excellence.
John Economaki
Back in 2006, John Economaki--the founder of Bridge City Tool Works embarked on a mission to revolutionize the user experience of traditional European planes. It was during this pursuit that he had an encounter with a wild fox, mesmerized by the stunning beauty of its fluffy tail.
This enchanting moment became the inspiration for the first plane in the "FOXTAIL" series—the HP-7 SHOULDER PLANE. Renowned for its exquisite design, unique mechanism, and exceptional performance, the HP-7 quickly captured the hearts of woodworking enthusiasts.
Building upon the success of the HP-7, John introduced the CT-14 1-1/8" FOXTAIL SHOULDER PLANE later that year.
This larger version featured a captivating "skeletonized" body with a pierced design, perfectly aligning with the overall"FOXTAIL" theme.
In fact, when viewed as a whole, the CT-14 resembled a proud male fox, as John envisioned. Woodworkers were captivated by its remarkable design, functionality, and remarkable performance. solidifying its status as one of John's most memorable tools.
Now, we proudly introduce the latest addition to the "Foxtail" series—the HP-10 Foxtail Convertible Plane. Standing out with its distinctive design, the HP-10 is a versatile small plane system. It boasts interchangeable soles and mated, self-indexing irons, providing effortless customization and improved usability. Designed to accommodate fences and depth skids on both sides, the HP-10 caters to the needs of both right and left-handed users. Equipped with the standard Shoulder Iron Kit, the HP-10 delivers exceptional shoulder planing capabilities. But that's not all! By simply swapping the iron kits, the HP-10 transforms into a rabbet plane, a coving plane, or even a crowning plane. Experience the true potential of the HP-10 and unlock a world of precision in your woodworking endeavors.
Embrace the rich legacy of Bridge City Tool Works, esteemed for its craftsmanship of exceptional tools.
With the HP-10 Foxtail Convertible Plane, you can confidently immerse yourself in the Bridge City Tool Works experience—a seamless blend of precision, performance, and unwavering dedication to excellence. Elevate your woodworking mastery and unlock a world of precision and creativity with the HP-10, a testament to the artistry and ingenuity of Bridge City Tool Works.

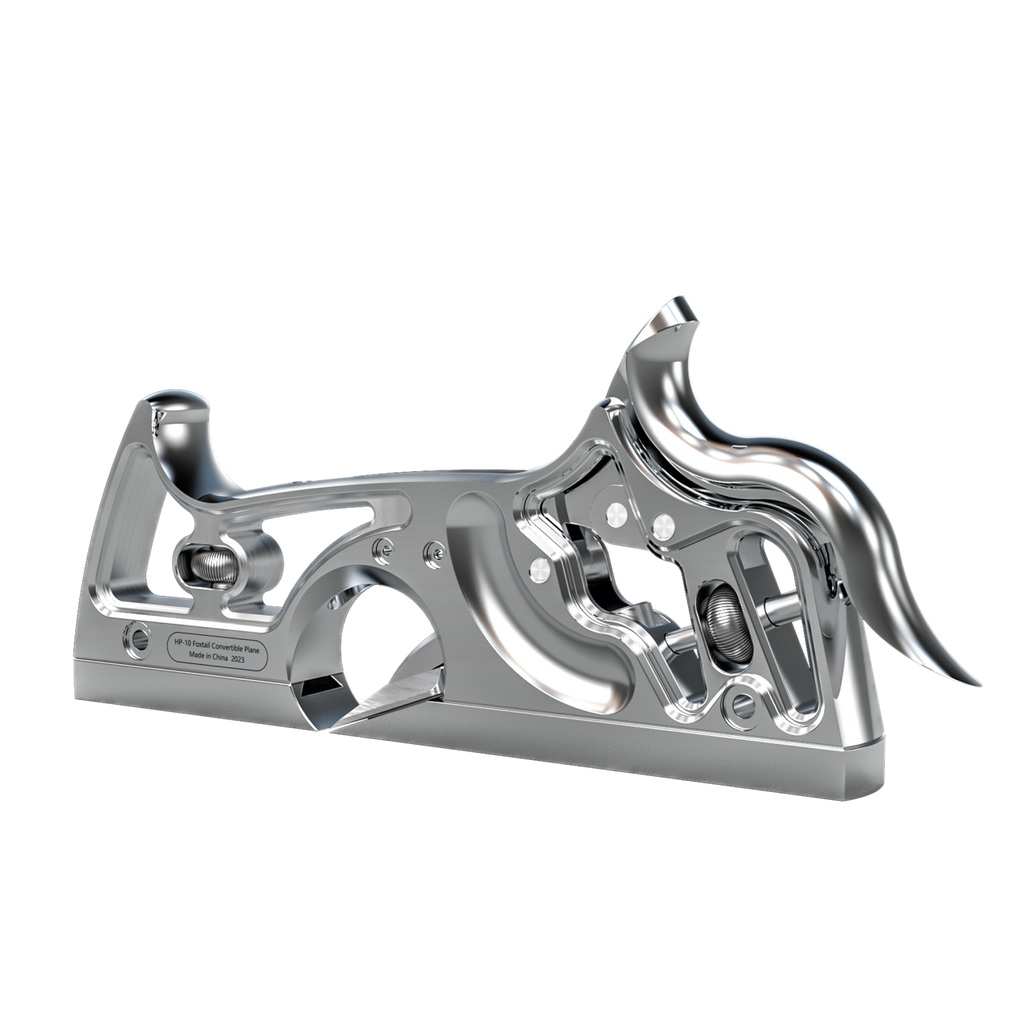

The Unique Design of the HP-10
Presenting the latest innovation in the Foxtail series - the HP-10 Foxtail Convertible Plane. Distinguished by its distinctive design, the HP-10 functions as a versatile small plane system.
Interchangeable Soles and Irons
It boasts interchangeable soles and mated, self-indexing irons, enabling effortless customization and improved usability. As a standard feature, the HP-10 comes with a Shoulder Iron Kit, providing exceptional shoulder planing capabilities. However, it doesn't stop there. By simply swapping the iron kits, the HP-10 can transform into a rabbet plane, a coving plane, or even a crowning plane. Explore the true potential of the HP-10 and unlock a world of precision in your woodworking endeavors. Also, to accommodate users of the older version of HP-10, all the soles and irons of the new version of HP-10 are compatible and can be adapted for use on the older version of HP-10.

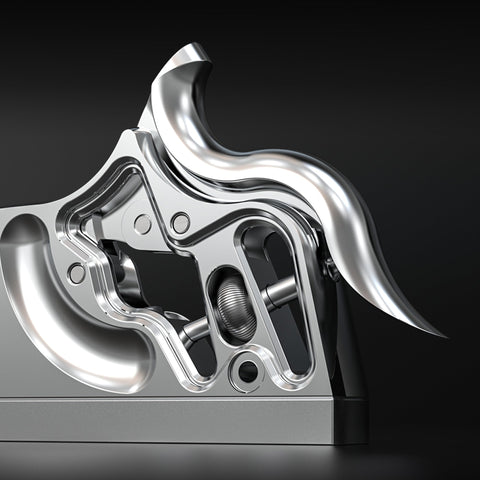

Unique Foxtail Handle
The ergonomic foxtail handle is thoughtfully designed to provide a secure and comfortable grip, minimizing fatigue during extended use. Throughmeticulous polishing, the foxtail handle delivers an exquisite tactile and visual experience.
Efficient Blade Tension
Iron Locked
Iron Unlocked
Effortlessly control blade tension with the innovative four-linkage mechanism, enhancing your work efficiency and productivity
The Iron Bed
The angle of the iron bed, meticulously designed to be 20°, provides an ideal attack angle for achieving smooth surfaces without tearing, feathering, or chatter marks. With the bevel-up installation of the irons, the HP-10 withdifferent irons can provide versatile cutting angle for your needs.
Standard Shoulder Iron
Experience the versatility of the included shoulder iron kit, featuring an adjustable mouth for fine-tuning shaving thickness and achieving clean and accurate cuts even on challenging grain patterns.
With the 20° iron bed and bevel-up installation, the cutting angle of this should plane is 40°.
Easy Adjustments
Iron Adjustment
Easily adjust the cutting depth using the knurled locking wheel, ensuring precise and effortless adjustments to meet your specific requirements.
Rotating the Knurled locking wheel clockwise increases the cutting depth, while rotating counterclockwisedecreases it.
When the knurled locking wheel is turned one full revolution, the cutting depth changes by 0.45mm (0.017”).
Mouth Adjustment
Additionally, the mouth opening can be easily adjusted by loosening the front tote and sliding the front sole as needed, minimizing tear-outs and splits when working with difficult grain patterns.
Excellent Accessories

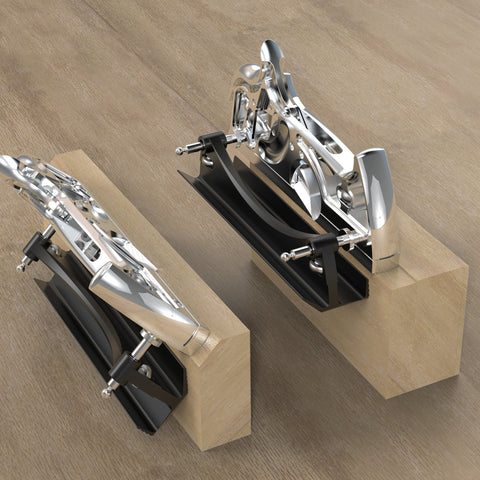

Dual Faces Fence
Enhance accuracy with the dual faces fence, allowing for planing square edges or flipping the fence to plane 45-degree faces. This feature enables woodworkers of all skill levels to achieve impeccable results.
Depth Stop Assembly
The HP-10 comes with a set of Depth Stop Assembly, providing precise depth control during your woodworking projects. Whether using the shoulder iron or rabbet iron, the Depth Stop Assembly ensures consistent and accurate grooves up to a maximum depth of 28mm (approximately 1-3/32"). It can be easily installed on either side of the plane body to accommodate your specific needs.
Unparalleled Craftsmanship
The HP-10 is meticulously crafted with CNC machining techniques using stainless steel and aluminum alloy, ensuring unrivaled durability and stability.
Optional Kits
Dia. Crown Kit
Cove Iron Kit
Shoulder/Rabbet Cutting Kit
Explore the boundaries of what the HP-10 can achieve with our optional kits, enabling astonishingly precise cuts in coving, rabbet, and crown profiles.
Specifications
"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."
