The Dado Groove Kit
For HP-6FX Mini Multi-Plane
Dados and grooves are everyday needs for most woodworkers and making them entirely by hand has never been easier or more accurate. Cutting a dado or groove with a plow plane along the grain is not adifficult task. However, cutting grooves in end grain and across the grain can be quite difficult with a traditional plow plane because they lack a scoring cutter.
All of The Dado Groove Kits for the HP-6FX Mini Multi-Plane will make cuts that equal or surpass cuts made on a table saw in any grain direction. The HP-6FX Dado Groove kits are simply unmatched for ease of use. Each kit attaches to the HP-6FX in a matter of seconds and you can make straight cuts by either using the guide fence or running the plane body against a board clamped to your stock. If cutting depth needs to be precisely controlled you can employ the help of HP-6FX depth skids.
Imagine making cuts—entirely by hand—in any grain direction, that rival any technique for quality and accuracy.
*This Dado Groove Kit is perfectly compatible for the HP-6v2 Mini Multi-Plane (Dovetail Fastening System).
*This Dado Groove Kit is NOT compatible for the HP-6 Mini Multi-Plane (Screw Fastening System).
HP-6FX 2mm Dado Groove Iron
Max. Cutting Depth: 4mm
HP-6FX 3mm Dado Groove Iron
Max. Cutting Depth: 6mm
HP-6FX 4mm Dado Groove Iron
Max. Cutting Depth: 8mm
HP-6FX 4mm Dado Groove Iron
Max. Cutting Depth: 8mm
HP-6FX 6mm Dado Groove Iron
Max. Cutting Depth: 9mm
HP-6FX 8mm Dado Groove Iron
Max. Cutting Depth: 9mm
HP-6FX 10mm Dado Groove Iron
Max. Cutting Depth: 10mm
HP-6FX 12mm Dado Groove Iron
Max. Cutting Depth: 12mm
Iron Honing
Sharpening the iron and scoring cutter is easy. The irons are sharpened using any technique that works for you on a flat stone (we do recommend a guide for the smaller width irons).
（The hone is not included.）
The scoring cutter is reversible and can be easily honed on a sixty-degree knife edge stone.

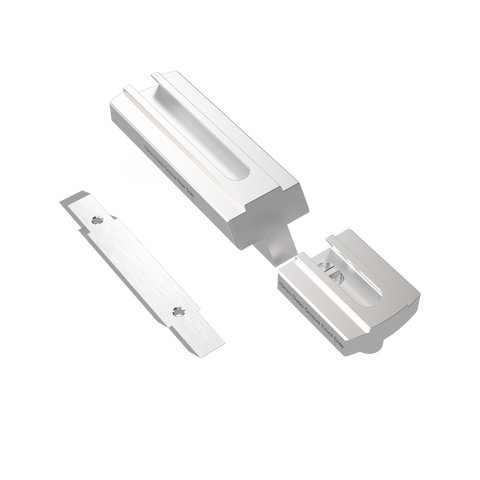

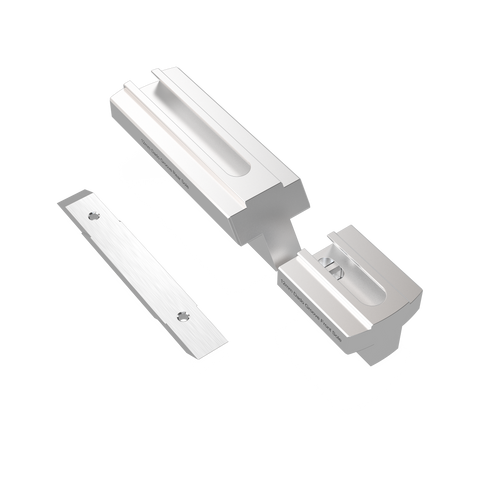

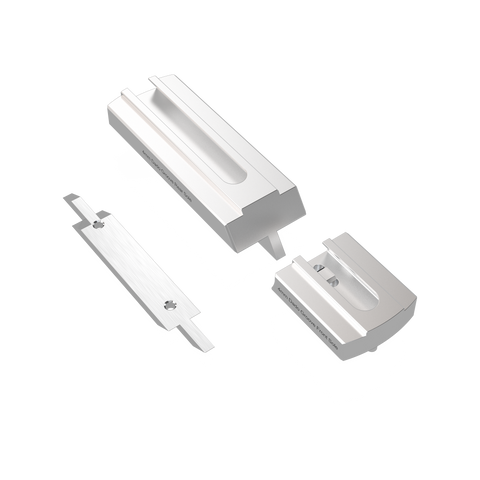

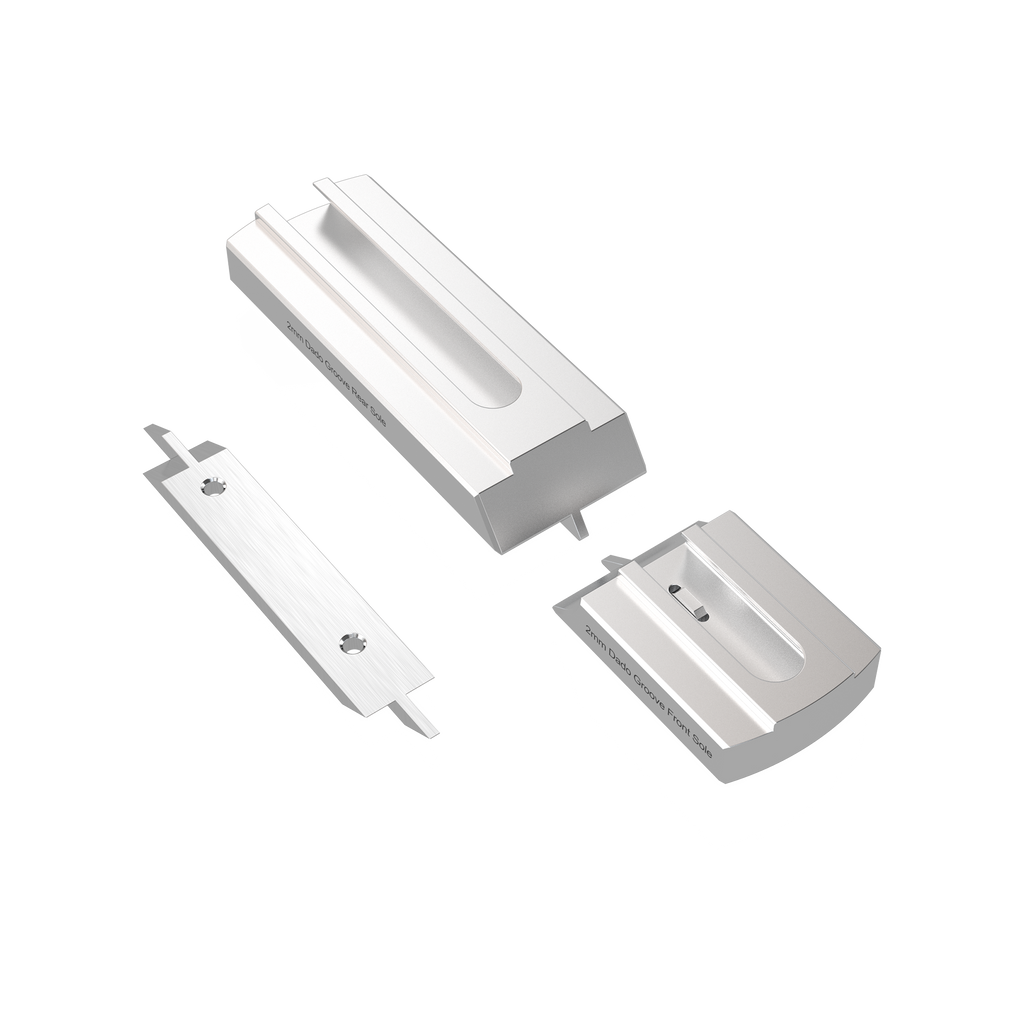

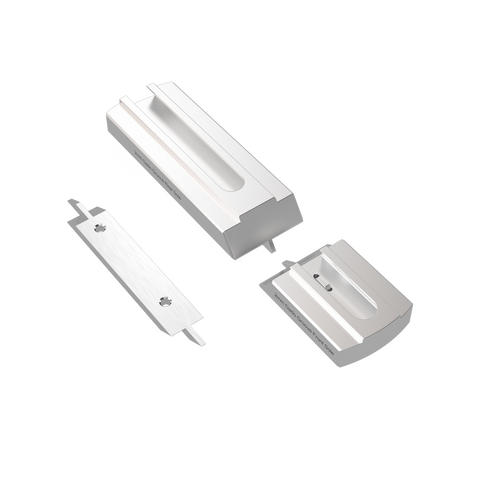

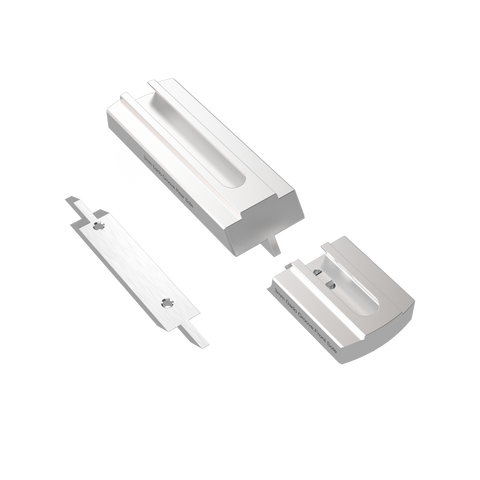

Included Items
Each Dado Groove Kit includes:
(1) Groove Iron
(1) Groove Front Sole
(1) Groove Rear Sole
(1) Scoring Cutter
Specifications
*This Dado Groove Kit is perfectly compatible for the HP-6v2 Mini Multi-Plane (Dovetail Fastening System).
*This Dado Groove Kit is NOT compatible for the HP-6 Mini Multi-Plane (Screw Fastening System).
"Some images on this page are computer-generated representations of the product and may differ from the actual product. Colors, textures, and other details may not be accurately represented in the images. Please refer to the product description and specifications for more information."
